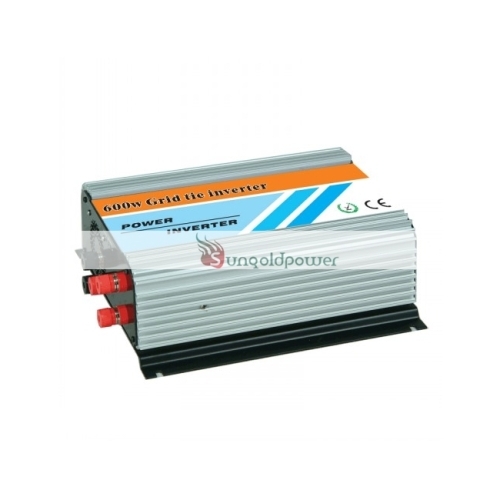

600W Grid Tie Inverter For Wind System DC/AC Input 10.8V- 30V

Payment Terms:	T/T,WU;paypal
Place of Origin:	, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

For AC/DC Output Wind Turbine (optional)
Build In Dump Load Controller
Build In High Wind Protection

The grid-tie inverter can transfer wind energy from wind generators directly into the home grid using no extra equipment. It can be connected to any outlet (conventional network) in the home. The grid tie wind turbine inverter controls the phase and the frequency and voltage of the power generated by the wind generator. It produces a pure sine-wave and matches that of the grid.

This model grid-tie has designed for wind turbines. It can maintain the rotating speed of the wind turbine and keep the voltage from the wind turbine always at the range of the rated range. It also has a high voltage protection function, when the wind is too big, and the dump load controlling system can't keep the output voltage from the wind turbine, the controller will disconnect itself from the wind turbine, so it is very safe to be used.

For the AC output 3 phase wind turbine system ,There are 5 terminals on the left side of the inverter, 3 terminals will be connected to the AC output from the wind turbine, and 2 black terminals will be connected to dump load resistors.

For the DC output wind turbine system, There are 4 terminals on the left side of the inverter, 2 terminals will be connected to the DC output from the wind turbine, and 2 black terminals will be connected to dump load resistors.

Detailed specification:

Model		GTI-W600
AC Output Continuous Power		550W
AC Output Max. Power		600W
AC Output Voltage Range	Switch at 230V Position	190V ~ 260V
	Switch at 115V Position	90V ~ 130V
AC Output Frequency Range		46Hz ~ 65Hz
Total Harmonic Distortion(THD)		<5%
Power Factor		0.99
Input DC or AC Voltage Range ( Optional )		10.8V ~ 30V
Peak Inverter Efficiency		92%
Standby Power Consumption		<0.5W
Output Current Waveform		Pure Sine-wave
Recommend dump load resistor		5 ohm/500w
Operating Temperature Range		-10 0C ~ 45 0C
Storage Temperature Range		-40 0C ~ 65 0C
Product Size/pc		272 * 233 * 95mm
Package Size/pc		332 * 265 * 145mm
N.W./pc		4kgs
G.W./pc		4.5kgs

Featured Function:

Separate MPPT control function
Stackable setup & free combination, without interaction
Easy installation, simple operation, low cost maintenance
High Wind Protection	Automatic disconnect from the wind turbine
Over Current Protection	Slow down inverter inner current
Short Circuit Protection	Buzzer alarm, Led light stay orange color
Over Temperature Protection	Auto-recovery after cooling down
Reverse Polarity Protection	Built-in fuse burnt-out, fuse replaceable
Anti-Island Protection	Grid no voltage- LED red light stay ON Grid beyond voltage- LED red light twinkle
