MPPT 10A Solar Charge Controller Regulator 12/24V Max PV Input 100V

Place of Origin:

Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: SG-SCM10

Type: Others

solar charger controller: mppt solar charger controll...

Application: Others

Brand Name: http://www.sungoldpower.com...

12v/24v solar charger controller: pv charger controller

MPPT 10A Solar Charge Controller Regulator 12/24V Max PV Input 100V

Features:

·MPPT technology
·Peak conversion efficiency of 97%
·High Tracking efficiency of 99%
·Several seconds tracking speed
·4-Stage charge with PWM output
·Nature convection cooling
·Full power output in ambient temperature up to 45 ℃
·Temperature compensation
·Sealed, Gel and Flooded battery option
·Widely used, automatically recognize day/night
·Diversified load control

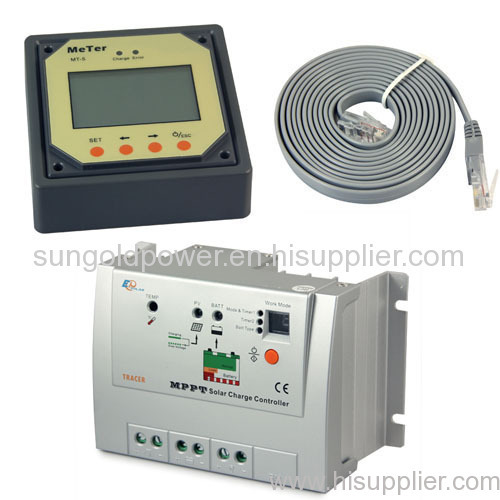

·RJ45 interface and LCDmeter display
·2 years warranty

·CE certificate

Electronic Protections:
·PV array short circuit
·Over discharging
·Over charging
·Load overload
·Load short circuit
·PV reverse polarity

·Battery reverse polarity

Model	SG-SCM10
Rated system voltage	12/24V auto work
Rated battery current	10A
Rated load current	10A
Max.battery voltage	32V
Max.PV open circuit voltage	100VDC
Max.PV input power	12V 130W; 24V 260W
Self-consumption	<10mA(24V)
Charge Circuit Voltage Drop	≤0.26V
Discharge Circuit Voltage Drop	≤0.15V
Communication	TTL232 / 8 pin RJ45
Temp.compensation	-30mV/℃/12V(25℃)
Working temperature	-35℃+55℃
Storage temperature range	-35℃+80℃
Humidity	10%-90% NC
Enclosure	IP30
Altitude	≤3000m
Dimension	156mm x 97mm x 68mm
Mounting holes	147mm x 60mm
Mounting hole size	Φ5
Terminal	4mm2
Weight	0.55kg
