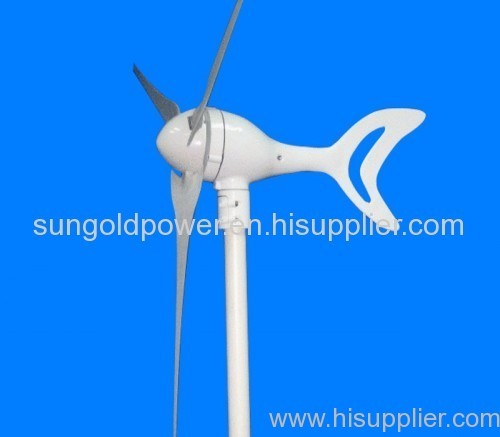

sungold power 400W Wind Turbine Generator 12V DC output optional 400w-wind turbine manufacturer from China Sun Gold Power Co,.Ltd

sungold power 400W Wind Turbine Generator 12V DC output optional

Place of Origin:

Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 400w-wind turbine

Brand Name: http://www.sungoldpower.com...

Type: Wind Power Generator

small wind turbine: 400w wind turbine

400w 12v wind turbine generator,we have AC or DC output optional, pls inform us what's your choice when you order it

Feature:

Low wind speed series wind turbines

generate more than 60% effective power than the same rotor diameter wind turbine annually.

High-efficient Generator
permanent magnet synchronous wind turbine,more than 10% of the efficiency of ultra-GB,starting resistance,only be 1/3 of the GB limit,motor insulation rating class H insulation.

Perfect Wind Wheel System

The wind turbine wheel are made of a low temperature resistance,aging high strength compound material,can cope with a variety of complex wind conditions,charge wind energy into electrical energy efficiently and sustainably..

Unique Design Of The Rudder

Wind turbine rudders are ale to respond to the wind speed and wind direction flexibly,enhancing the efficiency of power generation.

Parameter

Rated power: 400W

Battery voltage: 12V

Output: AC or DC output (optional)

Rated speed: 640r/m

Max power: 600W

Number of blade: 3 pcs

Starting wind speed: 3m/s

Cut-in wind speed: 3.5m/s

Cut-out wind speed: 15m/s

Rated wind speed: 12m/s

Engine: Three-phase permanent magnel AC generator

Rotor diameter: 1200mm

Blade material: Carbon fiber

Output line anti-winding device: Overall three-phase commutator

Over-speed wind protection: Tip stall protection + turned protection + Electromagnetic brake

Life span:20 years

Equipment surface protection: Aluminum oxide + plastic coating

Working temperature: -40°C-70°C

Weight: 8.5kg
