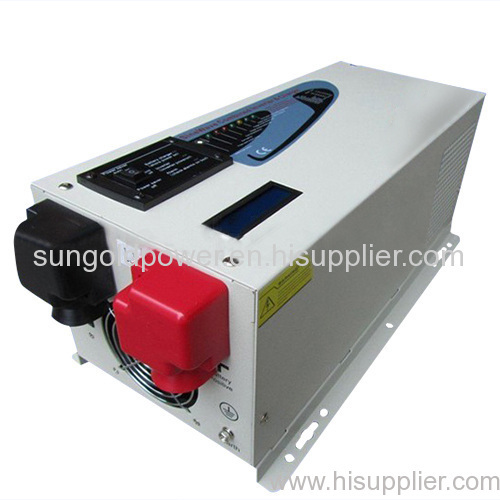

Pure Sine Wave Power Inverter with charger power inverter inverter with chaeger from China manufacturer

Pure Sine Wave Power Inverter with charger power inverter inverter with chaeger

Payment Terms:	T/T,WU;paypal
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Type: DC/AC Inverters

Output Power: >500W

Input Voltage: dc24v

Output Type: Single

Brand Name: http://www.sungoldpower.com...

Application:all kinds of home appliance, office equipment, solar power system, and other equipments which use single phase power.

Features:

Pure sine wave inverter with charger, available for sensitive load

low freqency with copper material

4-step progressive charging, 7 battery type selector

Fast and powerful charger with20A

Accept generator's energy output

High power factor

Automatically transfer between battery and line modes

Microprocessor control guarantees high reliability

Bypass without battery connected

Remote control function

Protection against:

Over load, over temperature, over charging, low battery

Reverse connection (optional by hard connector)

Blackouts

Model No.	SG-10002C inverter with charger
Nominal Power	1000W
Peak Power	3000W
AC output	AC110V/120V or AC220V/230V/240V
Phase & waveform	Single phase & sinewave
Acceptable Voltage	95-127VAC or 194-243VAC(wide mode)
Line Low Transfer	85V±4% or 164(154 wide mode±4%)
Line Low Return	95V±4% or 194(164 wide mode±4%)
Line high Transfer	135V±4% or 253±4%
Line high Return	127V±4% or 243±4%
Frequency	50Hz or 60Hz (auto sensing)
Line Low Transfer	47Hz for 50Hz,57Hz for 60Hz
Line high Transfer	55Hz for 50Hz,65Hz for 60Hz
Phase & waveform	Single phase & sinewave(bypass mode sync to input)
Voltage Regulation	±10%rms(bypass mode sync to input)
Frequency	50Hz±0.3Hz(bypass mode sync to input)
Crest Power	3 times of ratings
Short Circuit Protection	Yes, shutdown after 10 minutes
Power Factor	0.9-1.0
DC Input
Battery Voltage	24V
Minimum Start Voltage	20V
Low Battery Alarm	21V
Low Battery Transfer	20V
High Voltage Alarm	32V
Max Charging Current	20A
Over Charge Voltage	31.4V
Transfer Efficiency
line Mode	95%
Battery Mode	88%
power saver	Available when the load is less than 25 Watts
Indicators
7-LED Display	From the right to the left,LED1 line mode (green lighting)\LED2 inverter mode (green lighting)\LED3 charging mode(yellow lighting)\LED4 Fully charged (green lighting)\LED5 over heat shutdown(red lighting)\LED6 Overloaded shutdown(red lighting)\LED7 Saving Mode(green lighting)
3-LED Display	Charging Mode(green lighting)\inverter mode(green lighting)\Alarm(red lighting)
Switch selector	Saving Mode is on/off when push the switch forwards/backwards, keeping it horisontal is turning the inverter off.
Audible Alarm	Sounding when the heatsink's tem is over 105℃ and shutdown after 30 seconds.
Protections	low battery\over charging\over temp\over load
Enviromental
Operating Environment	0-40℃,0-90%RH(non-condensing)
Audible Noise	60dB
Size	442mm218mm179mm
Net Weight(KG)	18kg
