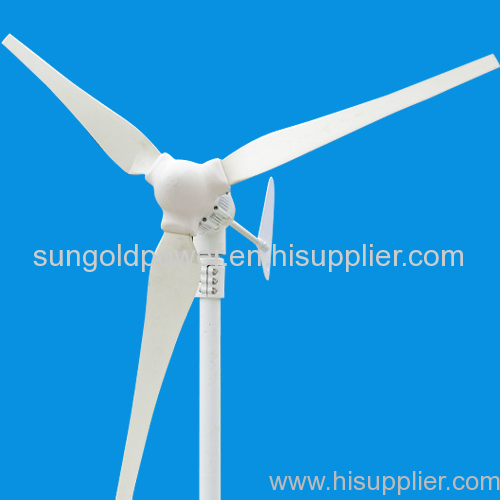

sungold power 400W wind turbine generator 12V AC 3 blades

Place of Origin: Guangdong, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Type: Wind Power Generator
wind turbine: Horizontal-Axis Wind Turbin...
Brand Name: http://www.sungoldpower.com...
400w wind turbine generator: 12v wind turbine generator

400W wind turbine generator 12V , 3 phase wind turbine, AC output.

 Feature:
1, starting with low wind speed, high output capactiy,low vibration
2. blades using new technology precision injection molding, together with the aerodynamic design and structural design.
3. permanent magnet generator rotor using patented alternator, together with the special stator design, effectively reduce the generation of resistance torque,
4. High efficiency of anti-wind ability, High cost-effective wind generator system for home

Parameter

Rated power: 400W
Battery voltage: 12V
Rated current: 33A
Max power: 460W
Output: AC output
Number of blade: 3 pcs
Starting wind speed: 3m/s
Cut-in wind speed: 3.5m/s
Cut-out wind speed: 15m/s
Security wind speed:45m/s
Rated wind speed: 12m/s
Engine: Three-phase permanent magnel AC generator
Rotor diameter: 1450mm
Blade material: Carbon fiber reinforced plastics
Output line anti-winding device: Overall three-phase commutator
Over-speed wind protection: Tip stall protection + Electromagnetic brake
Life span:20 years
Equipment surface protection: Aluminum oxide + plastic coating
Working temperature: -40°C-70°C
Packing dimension: 980*460*250mm
N.W.: 16kg
G.W.: 18kg

Quality And warranty:

1. CE TUV and ROHS certificate
2.12 month warranty
3. the buyer is responsible for the return post mail cost
4.15 days refund and 20 days exchange after receiving the product
