500W DC to AC Pure Sine Wave Power Inverter 500w pure sine wave inverter manufacturer from China Sun Gold Power Co,.Ltd

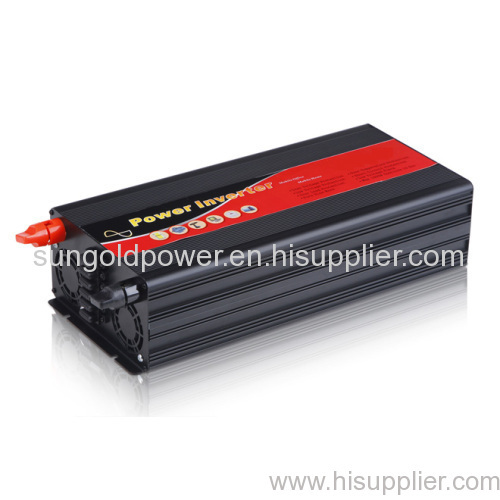

500W DC to AC Pure Sine Wave Power Inverter

Payment Terms:	T/T,WU;paypal
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 500w pure sine wave inverte...

Type: DC/AC Inverters

Output Power: 401 - 500W

power inverter: car inverter

Means of Transport: Ocean

Output Type: Single

Brand Name: http://www.sungoldpower.com...

Product name:500W DC to AC Pure Sine Wave Inverter,
DC12V/24V/48V, AC100V/110V/120V or AC220V/230V/240V

This series inverter is a high efficiency DC-AC inverter that converts 12/24/48 Volts DC to 300-600 Watts of pure sine wave AC power. It features a commercial grade design for extreme reliability, dual GFCI outlets and is safety certified to CE standards.It is ture sine wave output,suit for all equipment currently on the market. Wide operating DC input range and varieties protection functions.

Feature

Soft start function

Low idle power draw

Dual GFCI protected AC outlets

High efficiency, Low interference

LED indicators for power and protections

Includes detachable cable with battery clamps

Temperature controlled cooling fan to reduce energy consumption

Output short circuit / overload /over temperature protections

Input polarity reverse / under voltage / over voltage protections

specification

Model	SG-500S
Rated power	500W	500W	500W	500W	500W		500W
Peak power	1000W	1000W	1000W	1000W	1000W		1000W
DC input voltage	12V	24V	48V	12V	24V		48V
AC output voltage	100VAC,110VAC,120VAC			220VAC, 230VAC, 240VAC
No-load current	<0.8A
AC output frequency	50HZ±0.5Hz ,60HZ±0.5Hz
AC output waveform	Pure Sine Wave
Waveform distortion	THD3%(Linear load)
Efficiency	85%	88%	90%	85%		88%	90%
DC input voltage range	10.5-15V	21-30V	42-60V	10.5-15V		21-30V	42-60V
Low Voltage Alarm	10.5+/-0.3V	21+/-0.3V	42+/-0.3V	10.5+/-0.3V		21+/-0.3V	42+/-0.3V
Low Voltage Shutdown	10+/-0.3V	20+/-0.3V	40+/-0.3V	10+/-0.3V		20+/-0.3V	40+/-0.3V
Over Voltage Protection	15.5+/-0.5V	31+/-1V	62+/-2V	15.5+/-0.5V		31+/-1V	62+/-2V
Low Voltage Recovery	12+/-0.5V	24+/-1V	48+/-2V	12+/-0.5V		24+/-1V	48+/-2V
Over Voltage Recovery	14.8V	29.5V	59V	14.8V		29.5V	59V
Protective Function	Low/Over voltage		LED Red light, automatic recovery
	Over load		LED Red light, automatic recovery
	Over temperature		LED Red light, automatic recovery
	Short circuit		LED Red light, automatic recovery
	Input reverse connection		Fuse Burn-out
Working Temp.	0-40C
Storage Temp. Humidity	(-30)-70C
Dimension	21157cm
Net Weight	1.8±0.5kg
Warranty	12 Months
