2000W DC to AC Modified Wave Power Inverter,electric power inverter,power convertor,auto dc/ac inverter modified sine wave inverter manufacturer from China Sun Gold Power Co,.Ltd

Payment Terms:	T/T,WU;paypal
Place of Origin:	Guangdong, China (Mainland)

Product Detail

Model No.: modified sine wave inverter

Type: DC/AC Inverters

Output Power: >500W

Size: 5.0±0.5 Kg

power inverter: power convertor

Delivery Date: 15-30

Output Type: Single

Brand Name: http://www.sungoldpower.com...

Weight: 35*18*10 cm

High Transform efficiency
Modified wave output waveform
Anodized aluminum case provides durability
Soft start function
With USB output
Built in

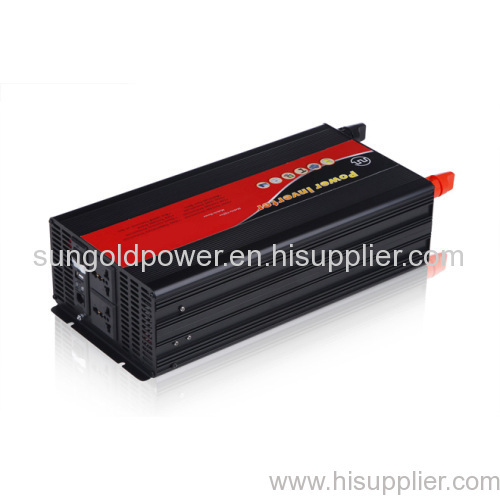

Product name:2000W DC to AC Modified Wave Power Inverter

DC12V/24V/48V, AC100V/110V/120V or AC220V/230V/240V

Characteristics:

High Transform efficiency

Modified wave output waveform

Anodized aluminum case provides durability

Soft start function

With USB output

Built in cooling fan

With battery cable

Over/low battery voltage protection

DC/AC Isolated

Function details:

Model	SG-2000M dc to ac converter
Rated power	2000W	2000W	2000W	2000W	2000W		2000W
Peak power	4000W	4000W	2000W	4000W	4000W		4000W
DC input voltage	12V	24V	48V	12V	24V		48V
AC output voltage	100VAC,110VAC,120VAC			220VAC, 230VAC, 240VAC
No-load current	<0.6A
AC output frequency	50HZ±0.5Hz ,60HZ±0.5Hz
AC output waveform	Modified Wave Inverter
Waveform distortion	THD3%(Linear load)
Efficiency	85%	88%	90%	85%		88%	90%
DC input voltage range	10.5-15V	21-30V	42-60V	10.5-15V		21-30V	42-60V
Low Voltage Alarm	10.5+/-0.3V	21+/-0.3V	42+/-0.3V	10.5+/-0.3V		21+/-0.3V	42+/-0.3V
Low Voltage Shutdown	10+/-0.3V	20+/-0.3V	40+/-0.3V	10+/-0.3V		20+/-0.3V	40+/-0.3V
Over Voltage Protection	15.5+/-0.5V	31+/-1V	62+/-2V	15.5+/-0.5V		31+/-1V	62+/-2V
Low Voltage Recovery	12+/-0.5V	24+/-1V	48+/-2V	12+/-0.5V		24+/-1V	48+/-2V
Over Voltage Recovery	14.8V	29.5V	59V	14.8V		29.5V	59V
Protective Function	Low/Over voltage		LED Red light, automatic recovery
	Over load		LED Red light, automatic recovery
	Over temperature		LED Red light, automatic recovery
	Short circuit		LED Red light, automatic recovery
	Input reverse connection		Fuse Burn-out
Working Temp.	0-40C
Storage Temp. Humidity	(-30)-70C
Dimension	351810 cm
Net Weight	5.0±0.5 Kg
Warranty	12 Months
