6000w Modified Sine Wave Power Inverter ,car inverter, electric power inverter power convertor modified sine wave inverter manufacturer from China Sun Gold Power Co,.Ltd

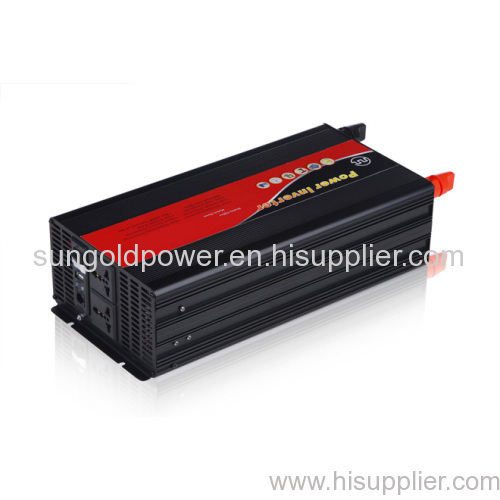

6000w Modified Sine Wave Power Inverter ,car inverter, electric power inverter power convertor

Payment Terms:	T/T,WU;paypal
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: modified sine wave inverter

Type: DC/AC Inverters

Output Power: >500W

Size: 0.75±0.1 Kg

power inverter: power convertor

Delivery Date: 15-30

Output Type: Single

Brand Name: http://www.sungoldpower.com...

Weight: 15*10.5*5.5 cm

High Transform efficiency
Modified wave output waveform
Anodized aluminum case provides durability
Soft start function
With USB output
Built in

This inverter is a very robust option for anything from chain saws and vacuums, to small pumps and freezers. With two AC receptacles, you can plug multiple devices into the inverter with the use of an extension cord or power strip. Since this inverter is a basic model power inverter, it does not have the digitals meters to display AC wattage or DC voltage. With these non-critical features not included with this model, the customer can save size and weight. The small overall footprint makes this inverter much easier to install in those tight spaces in your truck, RV, or boat. In addition, the inverter offers two cooling fans that will run as long as the power switch is on.

feature

With USB output

Built in cooling fan

Automatic restart function.

ON/OFF switch control the inverter by hand

Dual GFCI outlet for safe operation

Loads can be powered directly from the AC outlets.

The inverter is compact , light weight and easy to operate.

Anodized alluminum case provides durability & max heat dissipation

Heavy –duty cable clamps for high-output direct battery connections both included.

Two LED indicators on the front panel shows the working and failure state

The inverter is equipped with numerous protection features to guarantee safe and trouble-free

specification

Model	SG-6000M
Ratedpower	6000W	6000W	6000W	6000W	6000W		6000W
Peakpower	12000W	12000W	12000W	12000W	12000W		12000W
DCinput voltage	12V	24V	48V	12V	24V		48V
ACoutput voltage	100VAC,110VAC,120VAC			220VAC,230VAC, 240VAC
No-loadcurrent	<1.2A
ACoutput frequency	50HZ±0.5Hz,60HZ±0.5Hz
ACoutput waveform	ModifiedWave DC to AC power inverter
Waveformdistortion	THD3%(Linearload)
Efficiency	85%	88%	90%	85%		88%	90%
DCinput voltage range	10.5-15V	21-30V	42-60V	10.5-15V		21-30V	42-60V
LowVoltage Alarm	10.5+/-0.3V	21+/-0.3V	42+/-0.3V	10.5+/-0.3V		21+/-0.3V	42+/-0.3V
LowVoltage Shutdown	10+/-0.3V	20+/-0.3V	40+/-0.3V	10+/-0.3V		20+/-0.3V	40+/-0.3V
OverVoltage Protection	15.5+/-0.5V	31+/-1V	62+/-2V	15.5+/-0.5V		31+/-1V	62+/-2V
LowVoltage Recovery	12+/-0.5V	24+/-1V	48+/-2V	12+/-0.5V		24+/-1V	48+/-2V
OverVoltage Recovery	14.8V	29.5V	59V	14.8V		29.5V	59V
Protective Function	Low/Overvoltage		LEDRed light, automatic recovery
	Overload		LEDRed light, automatic recovery
	Overtemperature		LEDRed light, automatic recovery
	Shortcircuit		LEDRed light, automatic recovery
	Inputreverse connection		FuseBurn-out
WorkingTemp.	0-40C
StorageTemp. Humidity	(-30)-70C
Warranty	12Months
