60W Monocrystalline Solar Panel ,grade A solar module for solar system 60W Monocrystalline Solar Panel manufacturer from China Sun Gold Power Co,.Ltd

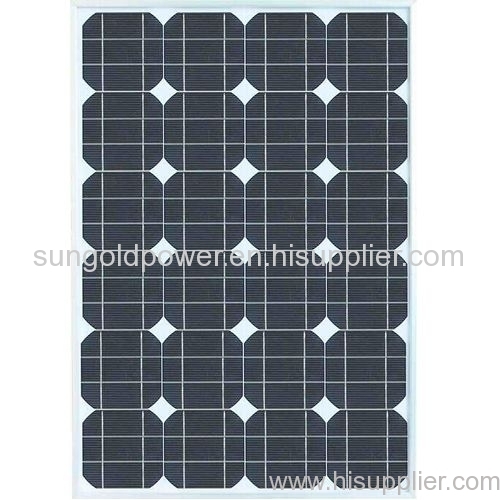

60W Monocrystalline Solar Panel ,grade A solar module for solar system

Payment Terms:	T/T,WU;paypal
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 60W Monocrystalline Solar P...

Material: Monocrystalline Silicon

Max. Power: 60w

Delivery Date: 15-30

Brand Name: http://www.sungoldpower.com...

solar panel: solar module

1. Solar panel/solar module/PV module/produced with high conversion efficiency
2. High quality of TPT, EVA, Tempered glass,

60W Solar Panel feature:

1. Solar panel/solar module/PV module/produced with high conversion efficiency
2. High quality of TPT, EVA, Tempered glass, aluminum frame to laminate solar panels and waterproof junction box and label;
3. We laminate solar panels from 5W-300W, with mono crystalline and poly crystalline solar cells.
4. We have TUV, ISO 9001/14001, CE, CEC certificate and so on.

60W Solar Panel Characters:

Model no	SG-60SPM
Nominal Output(Pmax)	60W
Cell Type	Mono-crystalline
Dimensions	84055035mm
Optimum Operating Voltage(Vmp)	7.5V
Optimum Operating Current(Imp)	.3.43A
Open Circuit Voltage(Voc)	21.89V
Short Circuit Current(Isc)	3.7A
Operating Temperature	-40°C ∼ +85
Maximum System Voltage	1000V DC
Power Tolerance	+0.5W
Weight	7.5 Kg
Front Cover	low iron tempered glass
Frame Material	Anodized aluminum alloy
Warranty	90% power output over 10 years
	80% power output over 25 years
	Free from defects in materials and workmanship for 5 years

STC* (Standard Test Conditions): Irradiance 1000W/m², Module Temperature 25°C, Air Mass 1.5
Note*: Nominal Operation Cell Temperature Sun 800W/m²,Air 20°C,Wind speed 1m/s

Quality assurance testing:

Thermal cycling test

Thermal shock test

Thermal/Freezingand high humidity cyclingtest

Electrical isolation test

Hail impact test

Mechanical, wind and twist loading test

Salt mist test

Light and water-exposure test

Moist carbon dioxide/sulphur dioxide

Package included:

1PC*60W monocrystalline solar panel
