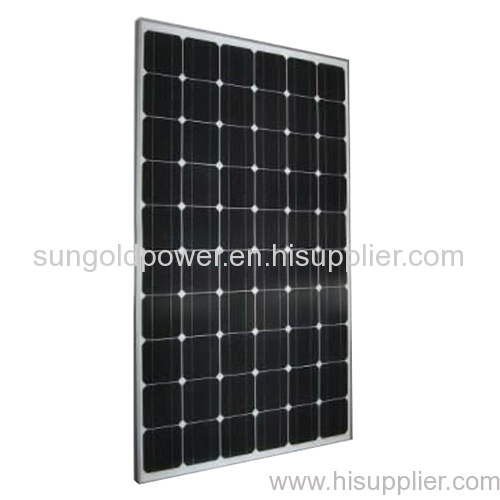

240W Monocrystalline Solar Panel ,grade A solar module for solar system

Payment Terms: T/T,WU;paypal
Place of Origin: Guangdong, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: 240W Monocrystalline Solar ...
Material: Monocrystalline Silicon
Max. Power: 240w
Delivery Date: 15-30
Brand Name: http://www.sungoldpower.com...
solar panel: solar module

1. Solar panel/solar module/PV module/produced with high conversion efficiency
2. High quality of TPT, EVA, Tempered glass,

 240W Solar Panel feature:
1. Solar panel/solar module/PV module/produced with high conversion efficiency
2. High quality of TPT, EVA, Tempered glass, aluminum frame to laminate solar panels and waterproof junction box and label;
3. We laminate solar panel from 5W-300W, with mono crystalline and poly crystalline solar cells.
4. We have TUV, ISO 9001/14001, CE, CEC certificate and so on.


240W Solar Panel Characters:
Model no
SG-240SPM
Nominal Output(Pmax)
240W
Cell Type
Mono-crystalline
Dimensions
1650*992*45mm
Optimum Operating Voltage(Vmp)
30.34V
Optimum Operating Current(Imp)
7.92A
Open Circuit Voltage(Voc)
37.76V
Short Circuit Current(Isc)
8.35A
Operating Temperature
-40°C ∼ +85
Maximum System Voltage
1000V DC
Power Tolerance
+0.5W
Weight
25.5 Kg
Front Cover
low iron tempered glass
Frame Material
Anodized aluminum alloy
Warranty
90% power output over 10 years
80% power output over 25 years
Free from defects in materials and workmanship for 5 years
STC* (Standard Test Conditions): Irradiance 1000W/m², Module Temperature 25°C, Air Mass 1.5
Note*: Nominal Operation Cell Temperature Sun 800W/m²,Air 20°C,Wind speed 1m/s
Quality assurance testing:
Thermal cycling test
Thermal shock test
Thermal/Freezingand high humidity cyclingtest
Electrical isolation test
Hail impact test
Mechanical, wind and twist loading test
Salt mist test
Light and water-exposure test
Moist carbon dioxide/sulphur dioxide
Package included:
1PC*240W monocrystalline solar panel with 1m MC4 cable
