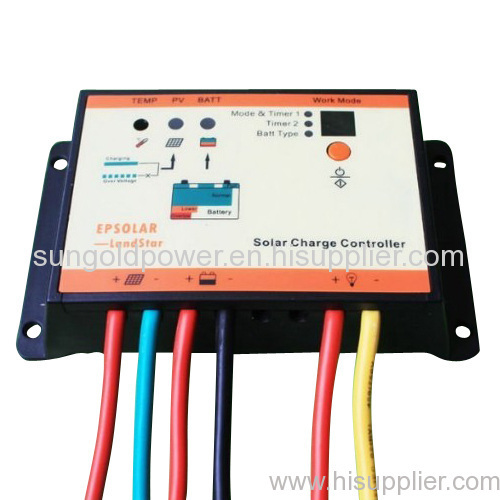

10A Solar Charge Controller Regulator 12/24V With Lighting and Timer Sensor Waterproof

Payment Terms:	T/T,L/C;paypal
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 10A PWM Solar Charge Contro...

Brand Name: http://www.sungoldpower.com...

Delivery Date: 10-60

solar charger controller: pwm solar charger controlle...

.Intelligent System Optimum Controller
2.High efficient Series PWM charging with temperature compensation
3.Compact size
4. MOSFET switch

Detailed Product Description:

Rated Current:10A

System Voltage:12/24V Auto Work waterpoof controller

Model selection:
10A 12/24V AUTO
Ideal for off-grid solar system up to 120W 12V or 270W 24V

Load work mode:
Dusk to Dawn, Light On+dual timer, Test, ON/OFF
Intelligent timer function with 1-15 hours option
Unique dual timer function, enhance the flexibility of street light system

Features:
1.Intelligent System Optimum Controller

2.High efficient Series PWM charging with temperature compensation

3.Compact size

4.Use MOSFET as electronic switch, without any mechanical switch

5.Digital LED menu, only one key solve all setting simple

6.Widely used, automatically recognize day/night

7.Intelligent timer function with 1-15 hours option

8.Unique dual timer function, enhance the flexibility of street light system.

9.Gel, Sealed and Flooded battery type option

10.Load status display

11.Big terminals and big distance between terminals

12.Electronic protection:Overheating, over charging, over discharging, overload, and short circuit

13.Reverse polarity protection : Any combination of solar module and battery

14.Load work mode: Light ON+Dual timer, Dusk to Dawn, Test, ON/OFF

15. water proof solar controller

Technical Specification:

Model	SG-SCCPP10
Rated Current	10A
System Voltage	12/24V auto work
Max Battery Voltage	32V
Charge Circuit Voltage Drop	≤0.26V
Discharge Circuit Voltage Drop	≤0.15V
Over Load Protection	1.25 times of rated current for 60 seconds,1.5times for 5 seconds
Short Circuit Protection	3.5 times of rated current
Self- consumption	Max.6mA
Working Temperature	-35°C to +55°C industrial
Equalize Charging Voltage	14.6V; x2/24V
Boost Charging Voltage	14.4V; x2/24V
Float Charging Voltage	13.8V; x2/24V
Boost Reconnect Charging Voltage	13.2V; x2/24V
Temperature Compensation	-30mV/°C/12V
Under Voltage Warning Voltage	12.0V; x2/24V
Low Voltage Disconnect Voltage	11.1V; x2/24V
Low Voltage Reconnect Voltage	12.6V; x2/24V
Equalize Duration	2 hours
Boost Duration	2 hours
Overall dimension	140 x 65 x 34mm
Terminals	4 mm2
Enclosure	IP66
