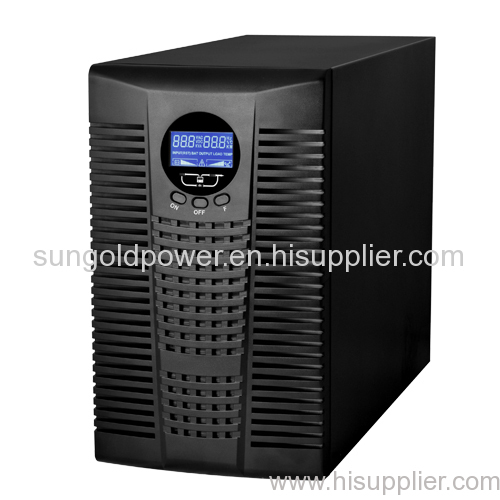

High Frequency Online UPS 3000VA/2400W 3KVA UPS Uninterrupted Power Suppy

Payment Terms: T/T,L/C;paypal
Place of Origin: Guangdong, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: 3000VA/2400W High Frequency...
Delivery Date: 10-60
Phase: Single Phase
Protection: Unbalanced Loads
Output Voltage: 110/120V/220/230/240Vac(1±2...
3KVA online ups: high frequency online ups
Means of Transport: Ocean,Air
Application: Computer
Type: On-line
Brand Name: http://www.sungoldpower.com...
online ups: 2400w online ups

DSP Technology
Environment Friendly
Active input power factor correction (PFC)
Wide range of input voltage and frequency
Zero power switch delay

 Specification:
Rate Capacity:3000VA/2400W
Power factor:0.8
Input: 60-138Vac /115-300Vac 40-60Hz/50-70Hz
Output:110V/120V220/230V/240Vac(1±2%)
Wave Form: Pure Sine Wave
High frequency on line USP
0ms transfer time
CE and EMI certificate
Battery:
Type: Lead-acid battery, fully seal, free maintenance
The built-in capacity:3KVA-8pcs 7AH/12V
Rated Voltage: 96V
Applied scope:
Data Processing Center
National Defense System
Office Automation
Telecom System
Network Rooms
Education System
Medical Equipment
Financial System
Securities System
Product details:
DSP Technology:The advanced DSP digital control technology enables UPS more stable performance.
Environment Friendly: This UPS is eco-designed and manufactured to meet the pollution control requirement of Electronic Products, which means it will cause no harm to environment and human beings in normal usage.
Active input power factor correction (PFC):Digitalized control of the PFC enable the UPS to keep input power factor above 0.99 to prevent possible electric grid pollution and meanwhile mostly save the cost.
Wide range of input voltage and frequency: We intentionally widen the range of input factors to make sure the UPS can apply to various environment, which will effectively sustain the battery charging even in unstable power environment so that the service life of the UPS could be obviously prolonged.
Zero power switch delay:When the utility power fails, UPS will automatically switch from AC mode to battery mode with no delay, which ensures stable power supply of operating system.
Active Load Management: This technology allows the UPS to be set up at a fixed 50Hz or 60Hz output, while it also can intelligently monitor power usage and automatically sheds and reconnects loads in order to prevent generator overload.
Sufficient Expansion Slots: The pre-allocated smart slots enable flexibility RS232 software environment monitoring cards.
The load power factor is 0.8:It adapts the features of most current electric equipment and elevates the load-bearing capacity of the machines.
Generator Supportable:The wide range of input voltage and frequency can effectively separate the harmful electric wave produces by the generators and provide safe and reliable power supply.
Large-screen LCDWith English language of LCD display, It will show the UPS working status by the figures or code directly. And it could be estimated the failure causes, location quickly by reference of fault information polling list, which will make the UPS maintenances much more convenient.
Perfect protection Perfectly system protection functions: It has AC over-voltage, under-voltage, output over-voltage, under-voltage, output overload, short circuit protection, inverter, rectifier over-temperature protection, voltage under-voltage warning, battery over charging protection and other protections in one to ensure the system to operate stably and reliably.
MODEL
SG1K
SG2K
SG3K
SG6KS
SG10KS
Rated capacity
1KVA/800W
2KVA/1600W
3KVA/2400W
6KVA/4800W
10KVA/8000W
Input
Voltage
60-138Vac or 115 - 300Vac (optional)
  Frequency
40-60Hz / 50-70Hz
Power factor
0.99
Output
Voltage
110/120V/220/230/240Vac(1±2%) (optional)
Frequency
Synchronize with utility power(utility mode); 50 / 60Hz ± 0.2Hz(battery mode)
On-load factor
0.8
Overload rating
125% overload,1min
Battery
Type
Valve-control lead acid maintenance-free battery
Rated voltage
36V
72V
96V
192V (without battery)
192V (without battery)
Transfer time
0
Operating environment
Humidity: 20%-90%, Temperature:0oC-40oC
Size (WxDxH)mm
350 x 144 x 229
424 x 190 x 328
424 x 190 x 328
260x533x501
260x533x501
Net Weight(kg)
11.5
22.2
26.3
18kg
25kg
