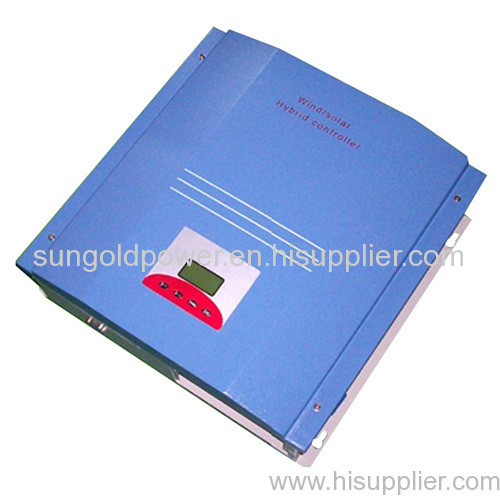

3000W 48V Wind/Solar Hybrid Charge Controller LCD Display

Payment Terms:	T/T,L/C;paypal
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 3000W 48V Wind/Solar Hybrid...

Delivery Date: 10-60

wind charge controller: Advanced Wind/Solar Hybrid ...

Means of Transport: Ocean,Air

Brand Name: http://www.sungoldpower.com...

hybid charger controller: 3000w wind solar hybid char...

PWM stepless unload mode
LCD display
Perfect protection function
Superior military-grade components
Voltage limiting and current-limiting charge

INTRODUCTION:

The advanced wind/solar hybrid controller is specially designed for wind system or high-end small-scale wind solar hybrid system, and especially suitable for wind/solar hybrid street light system& wind/solar hybrid monitoring system.The controller can control wind turbine or wind turbine and solar panel at the same time and transform the wind&solar energy into electricity for the DC load use, with excess energy stored into batteries. Varieties of appearance and function design, which is flexible to meet the requirements of different customers.

PERFORMANCE FEATURES:

- Superior military-grade components to ensure the product stability.

- Perfect protection function, thus the system has higher reliability.

- Check and set all operation parameters as requirement from LCD display.

- Voltage limiting and current-limiting charge mode, ensures battery in the best charging status.

- Two DC Load output, light-control, time-control, constant output, and multiple output control mode selection.

- PWM stepless unload mode, which burn the excess power into dump load, making the battery charging in best status.

- Design of high quality aluminum alloy appearance, with small size and good cooling effect.

- European CE certification.

TECHNICAL PARAMETERS:

Product Model	SP-WCL300048	SP-WCL300096	SP-WCL3000110	SP-WCL3000120	SP-WCL3000220
Rated Battery Voltage	48V	96V	110	120V	220V
Rated Wind Turbine Input Power	3kW	3kW	3kW	3kW	3kW
Maximum Wind Turbine Input Power	4.5kW	4.5kW	4.5kW	4.5kW	4.5kW
Wind Turbine Brake Current	63A	32A	28A	25A	14A
Rated Solar Input Power	900W	900W	900W	900W	900W
Floating Charging Voltage	58V	116V	133V	145V	266V
Display Mode	LCD
Display Parameters	Wind Turbine Power, Wind Turbine Voltage, Wind Turbine Current, PV Voltage, PV Charge Current, PV Power, Battery Voltage
Quiescent Current	≤20mA
Ambient Temperature & Humidity	-20+55℃/3585%RH(Without Condensation)
Communication Mode (Optional)	RS232\RS485\RJ45\GPRS (optional)
Temperature Compensation Function (Optional)	-4mV/℃/2V ,–35℃--+80℃ ,Precison:±1℃
Dimension (L x W x H)	523×423×170mm
Net Weight	16kg
Protection Function	Solar reverse charge protection , Solar reverse connection protection,Battery over charge protection ,Battery reverse connection protection, Lightning protection, Wind turbine current limiting, Wind turbine automatic brake and manual brake.
